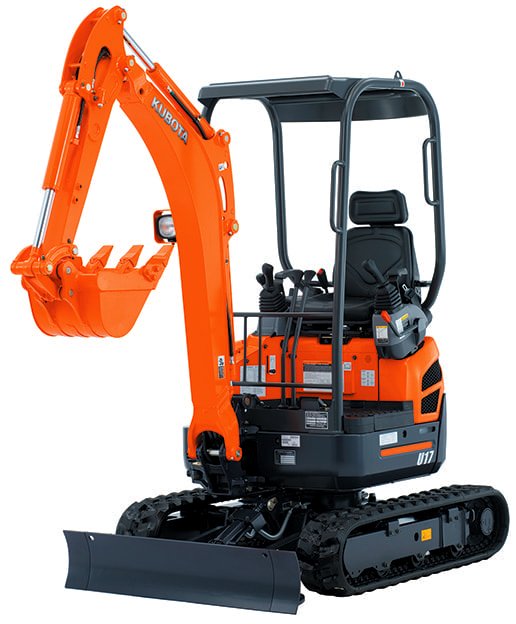

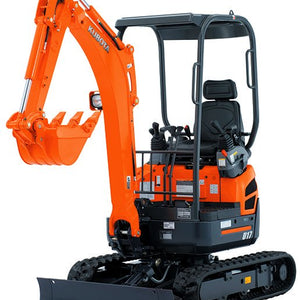

Kubota U17
Kubota U17
Kubota U17
Kubota U17

Kubota U17

MSRP AS LOW AS:
$36,782.00 USD
Sale {price}%
Images may reflect higher MSRP.

Tough job? Tight spaces? The Kubota U17 Compact Excavator is here to save the day. Standard two speed travel ensures you’re in total control of your excavator and a variable width undercarriage allows for maneuverability through narrow areas such as doors or gates. Rubber tracks make for a smoother ride and from your seat in the comfortable and spacious operator’s station, you’ll make ample use of the U17’s 16.1 horsepower rating. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.


0-0-48-or-up-to-2200-offer-badge_1
GET OUR PRICE
DOWNLOAD SPECS
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components
Engine
Model: Kubota U17
Horsepower (gross): 16.1
Displacement (cu. in.) 54.8 (898)
Dimensions
Overall Length, ft (mm):  11'7" (3545)
Overall Height, ft (mm): 7'8" (2340)
Overall Width, ft (mm): 3'3" (990) / 4'1" (1240)
Hydraulics
Pump Capacity (GPM): 4.57 (17.3) × 2 / 2.75 (10.4) × 1
Auxiliary Hydraulic Flow (GPM): 7.32 (27.7)
Max. Breakout Force (lbs): 3417.2 (1550) / 1918 (870)
Drive System
Travel Speed (low/high) 3417.2 (1550) / 1918 (870)
Tumbler Distance ft. in. (mm) 4'0" (1230)
Crawler Length ft. in. (mm): 5'2" (1585)
