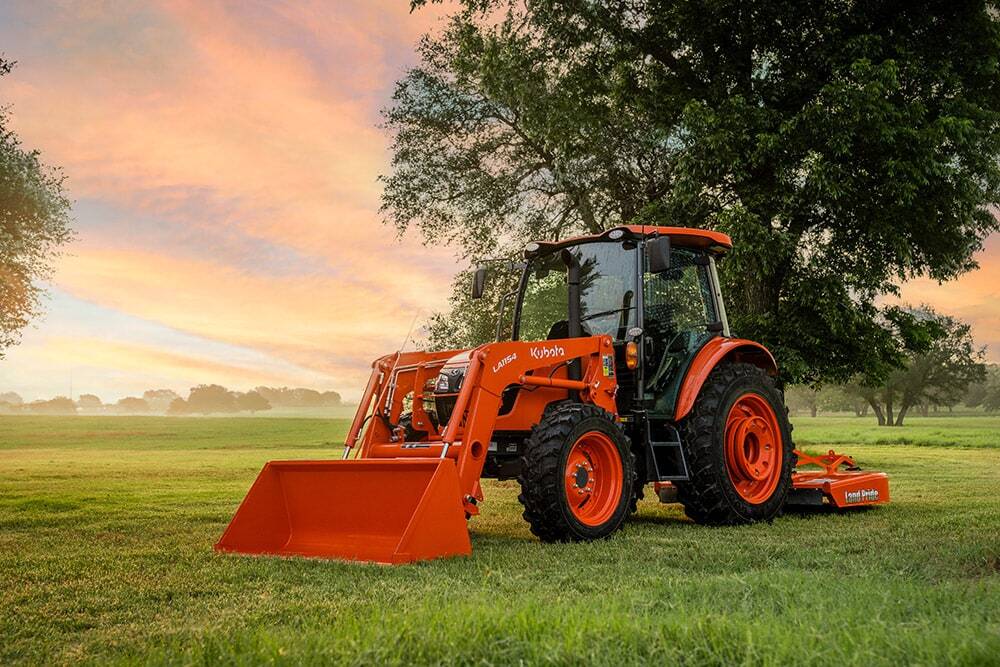

Kubota M4D-071HDC12

Kubota’s M4 series represents comfort, performance, and efficiency. This ideal chore tractor for small cattle/ hobby farm applications gives the tools needed to quickly and efficiently complete a day’s work. These tractors are packed with premium and ergonomic cab features built for operator comfort. The M4 Series is available in a Standard option or two Deluxe models: M4-071, M4D-061 and M4D-071. #1 Selling Tractor Under 200 HP.*


*Based on EDA/UCC Data from 01/01/2018 - 12/31/2022 for sales of new compact tractors 0-200 Hp in the USA.

The M4 Ultra Grand Cab II is one of the largest in its class. The overall air circulation in the cab has been optimized by the cab’s rounded glass to keep you cooler on hot summer days and warmer on cold mornings. The Ultra Grand cab also comes with a suspended seat to absorb shock and reduce operator fatigue. In addition, the spacious platform allows for plenty of legroom and maneuverability.

This ideal chore tractor is capable of running heavier workloads while maintaining high maneuverability with Kubotas bevel gear front axle. This will provide the tractor with greater all-around performance. Whether you're in the tight confines of a barnyard or going in and out of windrows, this M4 series will prove it’s class leading turn radius. LED work lights give the operator extra hours in the field by providing a bright 360 degree range of vision. Additionally, the glass roof panel as standard equipment, increasing visibility and operator control while the loader is being operated at full height.

The M4 brings new levels of efficiency to a wide range of jobs by offering a strong performance matched loader with optional KSR (Kubota Shockless RIde) and hydraulic self leveling which optimizes the operator full control of materials being moved. At the rear of the tractor, the high 3-point lift capacity of 3,307Ibs makes this tractor capable of tackling many tasks. The hydraulic independent PTO clutch can easily and quickly be engaged and disengaged on the go. This means mowing and operating hay equipment are all made more efficient. Hydraulic wet disc brakes require less pedal effort and retain high performance even after repeated heavy-duty work.

• RPM Dual Memory - The RPM Dual Memory function allows operators to save frequently used rpm speeds for repetitive tasks.
• 3-Point Hitch - The Category II 3-point hitches provide fast and simple attachment of rear-mounted implements.
• Telescopic Lower Link Ends
• Hydraulic Independent PTO
• Economy PTO - Optional on standard model

Engine
Model:	Kubota  M4D-071HDC12
Engine Gross HP at 3200 RPM:	73.2
PTO Horsepower at 3200 RPM:	60
Displacement:	203
Fuel Tank Capacity:	13.8 gal

Drive Train
Transmission:	F12/R12
Drive Method:	4WD
Brakes:	Wet Disc
PTO:	Live-independent PTO, electro-hydraulic clutch with brake

Hydraulics
Pump Output:	16.2 gpm
3-Point Hitch:	Telescopic Lower Link Ends, Telescopic Stabilizers
Lift Capcity at 24 in. Behind Pin:	3307 lbs
Steering:	Hydrostatic power steering

Dimensions
Wheelbase:	84.1 in.
Turning Radius (w/ brake):	11.8 ft
Tractor Weight with ROPS:	5952 lbs

Traveling Speeds at Rated Engine RPM
Forward:	1.6-18.2 mph
Reverse:	1.6-18.6 mph
