The L60 Limited Edition Series provides the best overall package for affordability, quality and comfort. As the total package, enjoy comfort in either the deluxe Grand L factory-installed cab or spacious open operator station while maximizing performance with Kubota's best in class HST Plus Transmission and many other industry-leading features the L60LE Series has to offer. #1 selling compact tractor in the USA.*
*Based on EDA/UCC Data from 01/01/2018 - 12/31/2022 for sales of new compact tractors 0-200 Hp in the USA.
The L60LE Series is designed with strength and durability in mind:
- Kubota Diesel Engine - Kubota is the #1 manufacturer of under 100 HP non-automotive, multi-cylinder diesel engines in the world
- Common Rail System (CRS) - The CRS delivers great fuel savings, less engine noise and vibration, and better emissions while still maintaining a high level of power and torque
- Smooth, Quiet Operation - Kubota Diesel Engines are designed to reduce noise and vibration which provides better comfort when operating
- Large Heavy Duty Chassis - The L60LE Series is equipped with a heavy duty front axle, cast steel transmission and rear end, as well as steel hood and fenders, making them built to last
Kubota understands that not every customer's needs are the same. With that in mind, Kubota offers multiple options for customers throughout the L60LE Series lineup. With ROPS and cab options ranging from 37.0 to 42.0 gross horsepower, Kubota's L60LE Series offers four affordable horsepower models to choose from based on your application and implements requirements.
The L60LE Series is designed with deluxe features for optimum comfort:
- Cab & ROPS Version – Available with either economical ROPS or the comfort of a climate-controlled cab

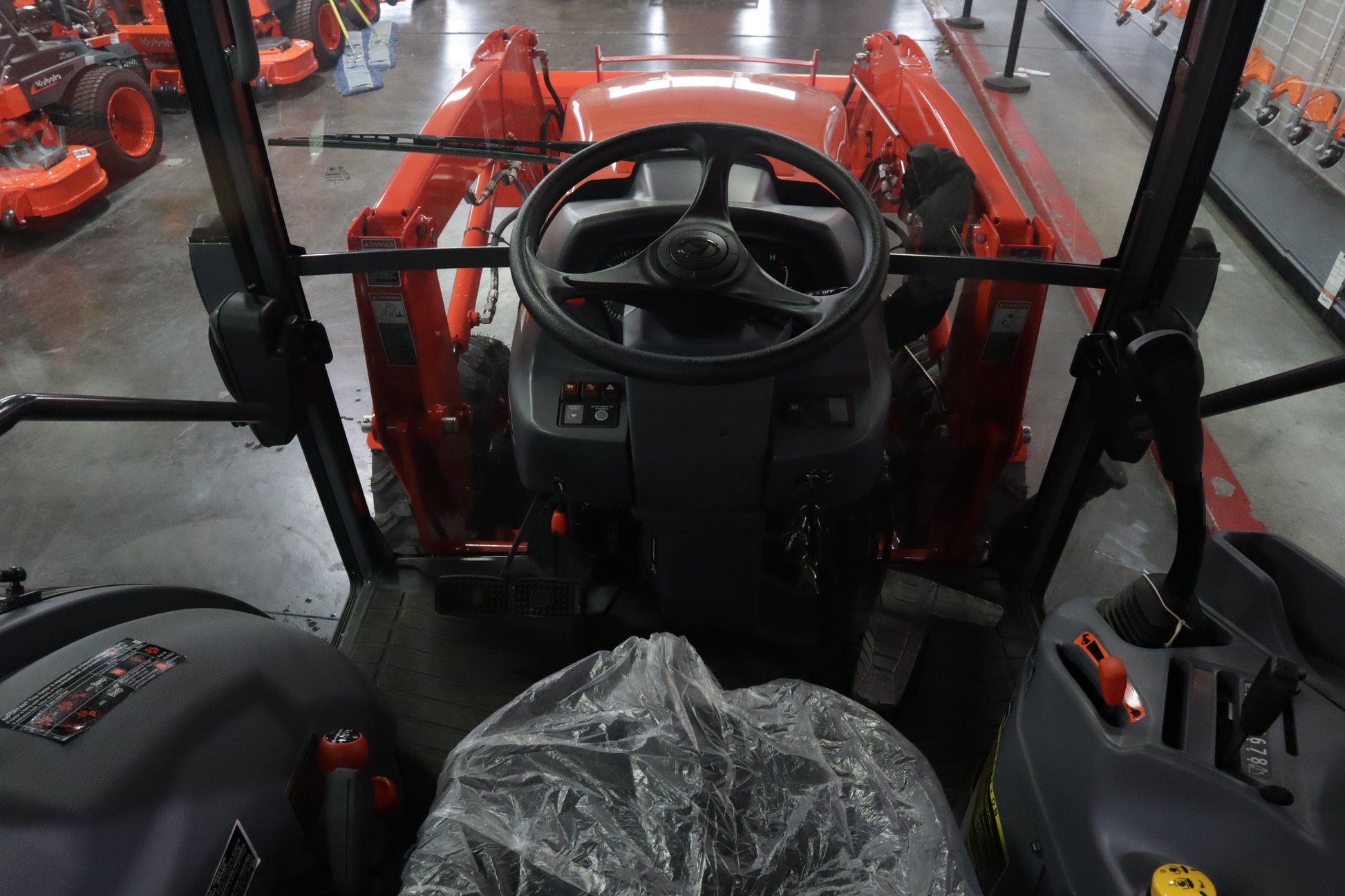

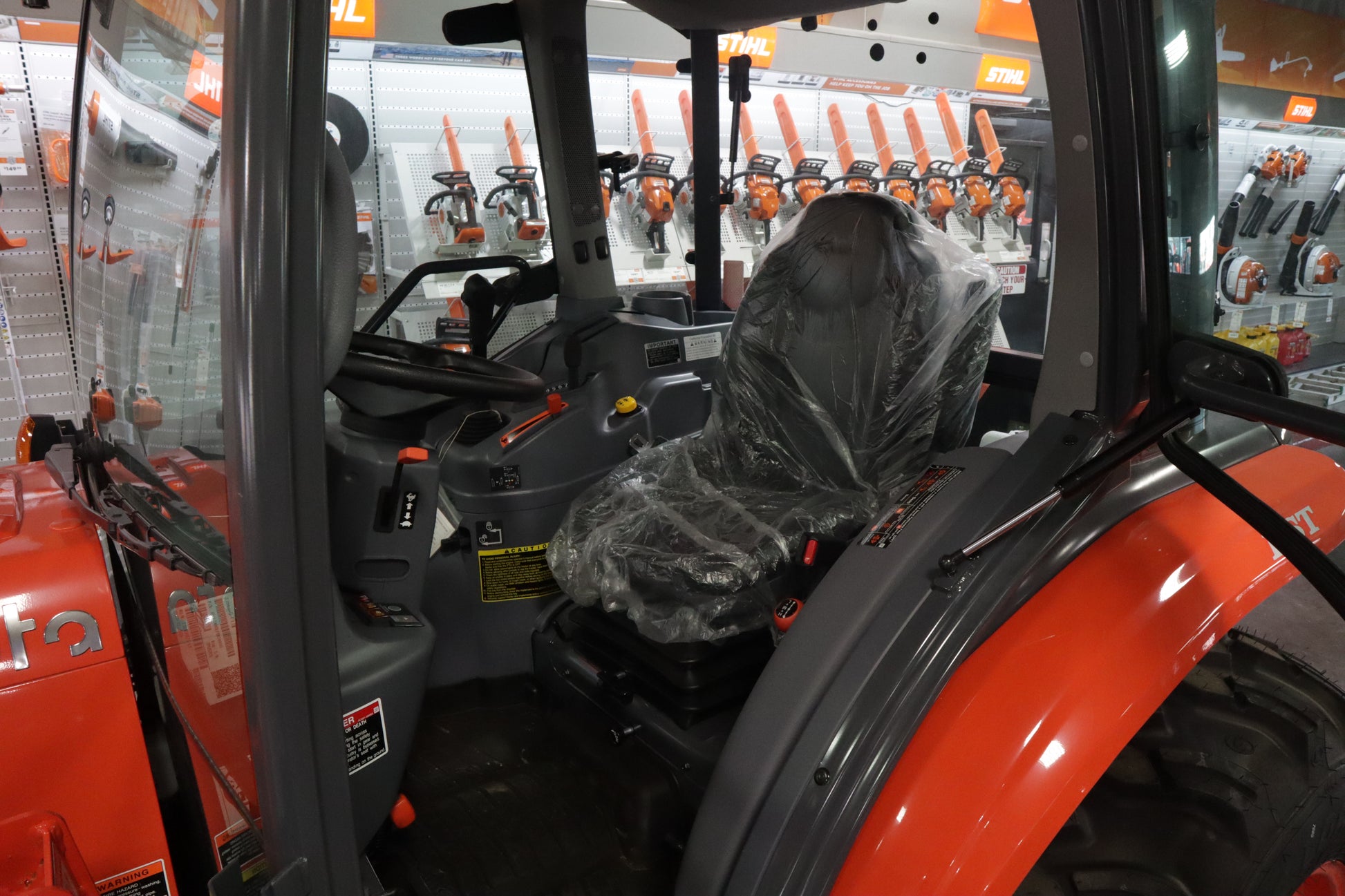

- Factory-Installed Cab Models - Work in comfort from your climate-controlled cab. Doors open wide for easier entry and exit from the cab. Comfort is further enhanced through better noise insulation for a quieter interior. The interior includes an ergonomic control layout, IntelliPanel display, cup holder, deluxe suspension seat, abundant storage compartments and wide legroom for optimum operator comfort
- Spacious Operator’s Station – Easy to get on and off with plenty of legroom to increase operator comfort
- Deluxe Suspension Seat with Armrest– Increases operator comfort
- Optional Air Ride Suspension Seat – Further increases comfort by absorbing shock
- Tilt Steering Wheel – Allows you to adjust the steering wheel for maximum comfort
- Rubber Floor Mat – Reduces noise and vibration, creating a more comfortable ride while decreasing fatigue
- Modern Dash Panel (ROPS Models) – Easy-to-read with all the information displayed right in front of the operator
- IntelliPanel Display (Cab Models) – Stay up-to-date with our easy-to-read display, showing all of your information right in front of you
- Easy-to-Use Controls – Simple controls that are easy to understand and operate, even for first time users
- Kubota Treadle Pedal Design – Effortlessly change speed and direction using Kubota’s forward and reverse treadle pedals
- Hydraulic Live-Independent PTO – Easy-to-use, no clutching or stopping
- Ready for a Long Day – Standard cup holder, tool box and large fuel tank capacity
| Engine | |
|---|---|
| Model: | Kubota L3560HSTC-LE (4WD, CAB) |
| Engine Gross HP at 3200 RPM: | 37.0 |
| PTO Horsepower at 3200 RPM: | 28.0 |
| Displacement: | 111.4 |
| Fuel Tank Capacity: | 13.5 gal |
| Drive Train | |
|---|---|
| Transmission: | HST Plus (3 Ranges) |
| Drive Method: | 4WD |
| Brakes: | Wet Disc |
| PTO: | Independent |
| Hydraulics | |
|---|---|
| Pump Output: | 8.1 gpm |
| 3-Point Hitch: | SAE Category I |
| Lift Capcity at 24 in. Behind Pin: | 2646 lbs |
| Steering: | Hydrostatic power steering |
| Dimensions | |
|---|---|
| Wheelbase: | 71.1 in. |
| Turning Radius (w/ brake): | 8.9 ft |
| Tractor Weight with ROPS: | 3880 lbs |
| Traveling Speeds at Rated Engine RPM | |
|---|---|
| Forward: | 0-16.5 mph |
| Reverse: | 0-14.9 mph |
