Kubota KX080-5
MSRP AS LOW AS:
Regular price
$138,273.00 USD
Payments as Low as $2,100/Month.

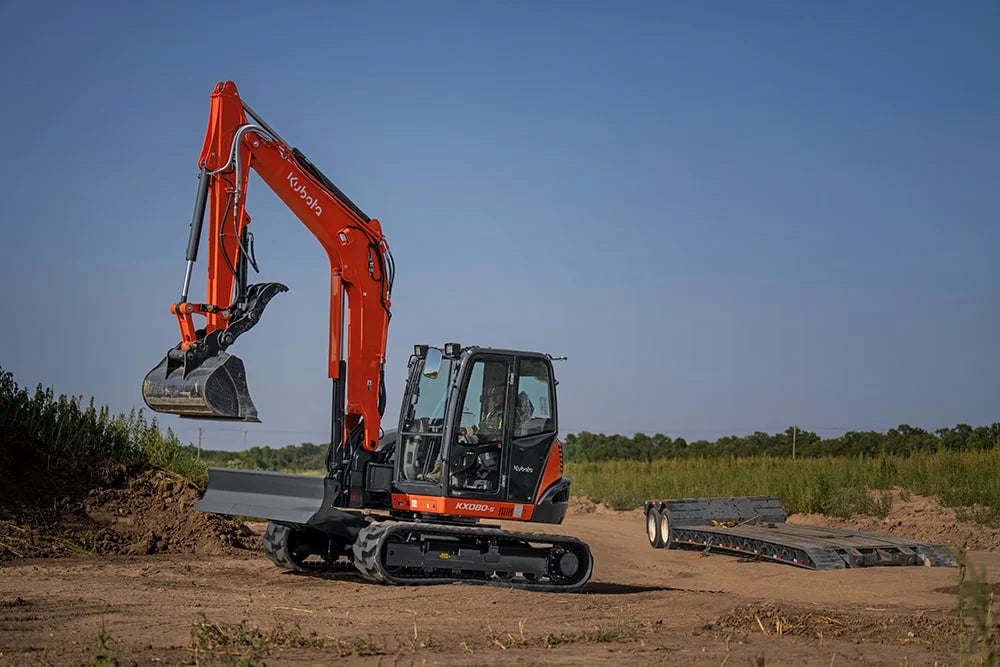

If you’re looking for top-of-the-line performance from your compact excavator, you’ve found what you’re looking for with the Kubota KX080-5. You’ll never struggle to get the job done with the KX080-5’s overpowering 66.6 horsepower produced by Kubota’s V3307-CR-TE5 engine. The KX080-5 is excavation bliss, and the only thing that’s missing is you. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Images may reflect a higher MSRP.
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Serviceability
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication
- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
Engine
| Engine | |
|---|---|
| Model: | Kubota KX080-5 |
| Horsepower (gross): | 66.6 |
| Displacement (cu. in.) | 203.3 |
Dimensions
| Dimensions | |
|---|---|
| Overall Length, ft (mm): | 21'1.9" (6450) |
| Overall Height, ft (mm): | 8'4" (2540) |
| Overall Width, ft (mm): | 7'2.6" (2200) |
Hydraulics
| Hydraulics | |
|---|---|
| Pump Capacity (GPM): | 22.3 (84.6) |
| Auxiliary Hydraulic Flow (GPM): | 26.4 (100) / 14.7 (55.8) |
| Max. Breakout Force (lbs): | 14660 (6650) / 8554 (3880) |
Drive System
| Drive System | |
|---|---|
| Travel Speed (low/high) | 1.7 (2.7) / 3.0 (4.8) |
| Tumbler Distance ft. in. (mm) | 7'6.6" (2300) |
| Crawler Length ft. in. (mm): | 9'6.2" (2900) |
