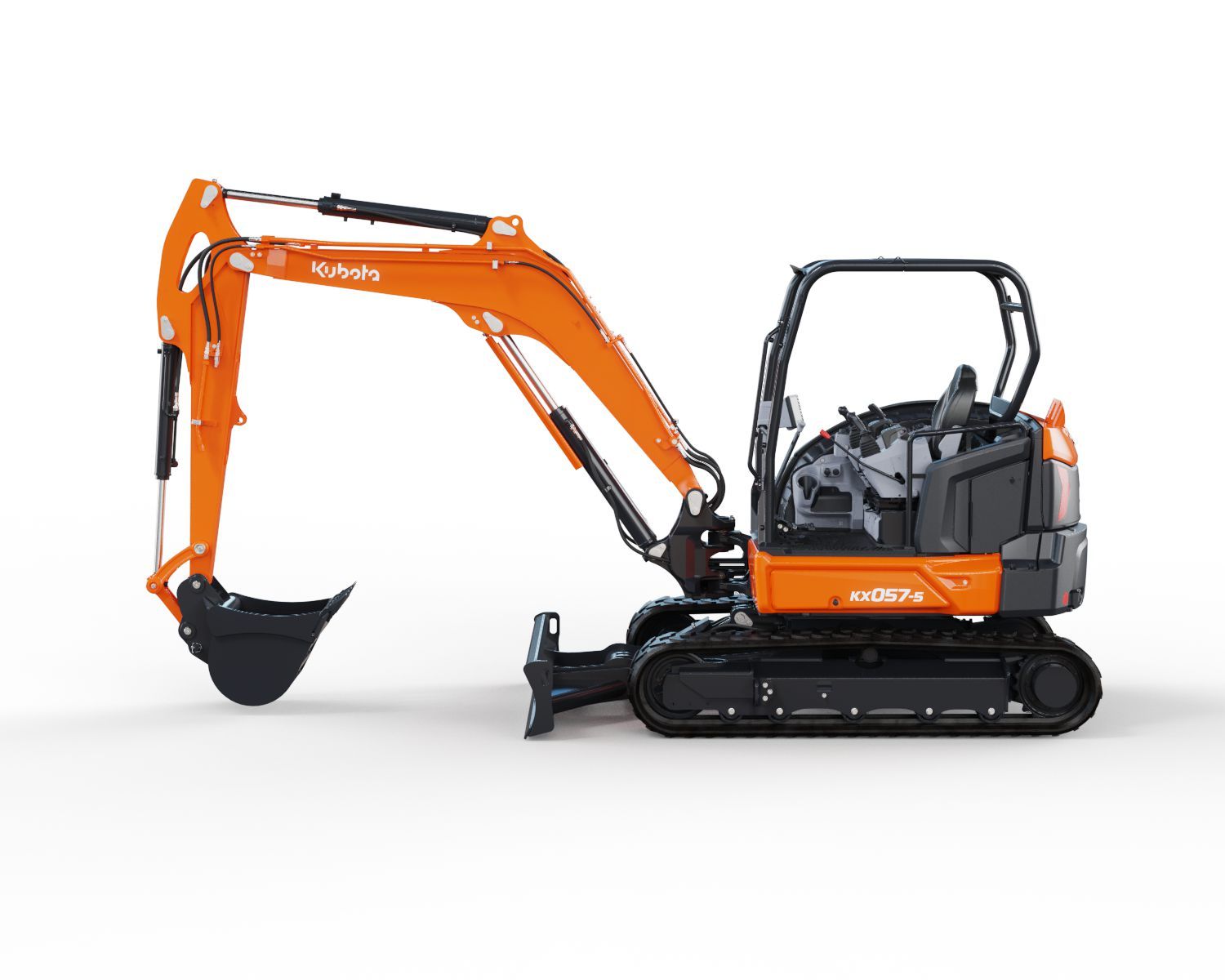

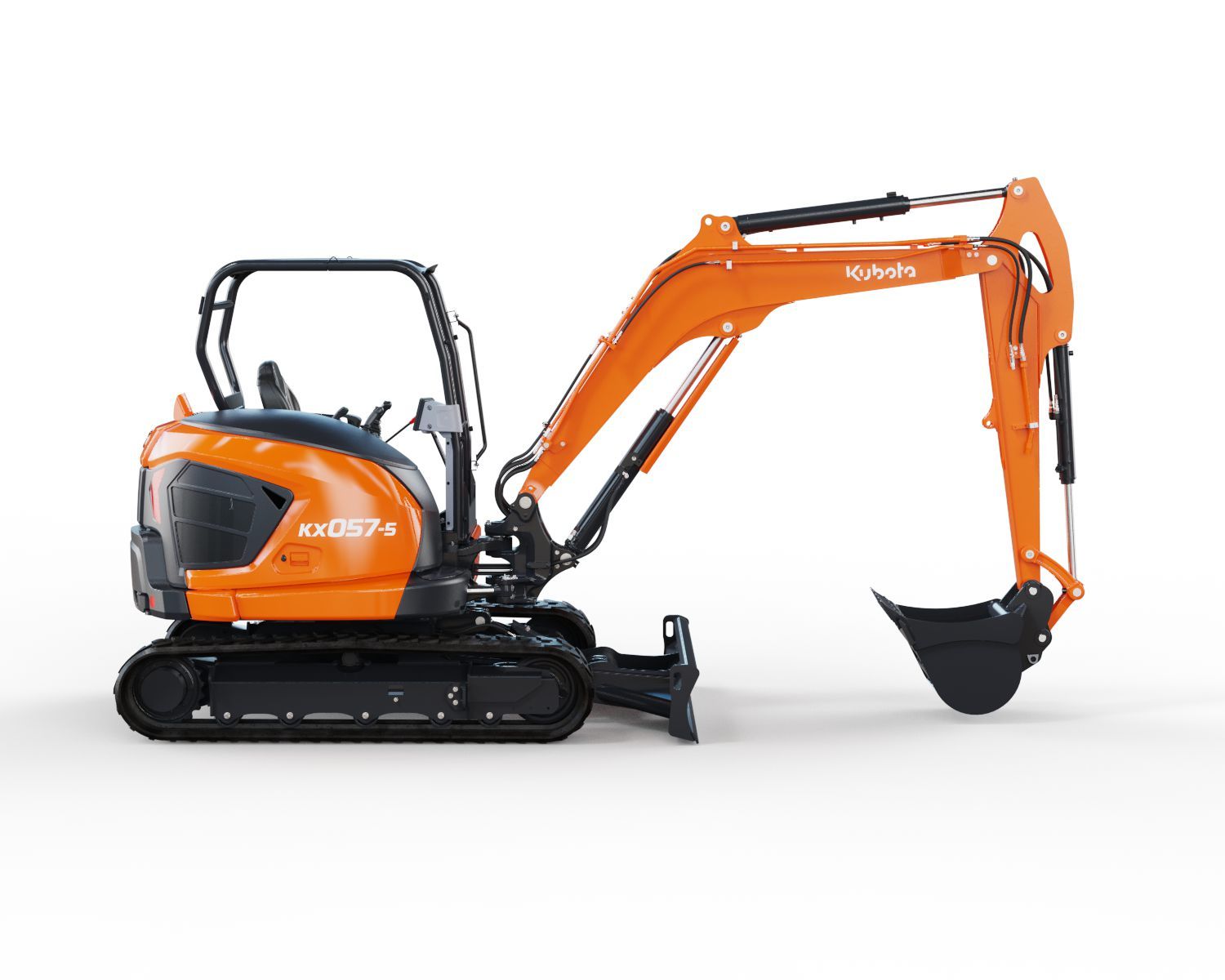

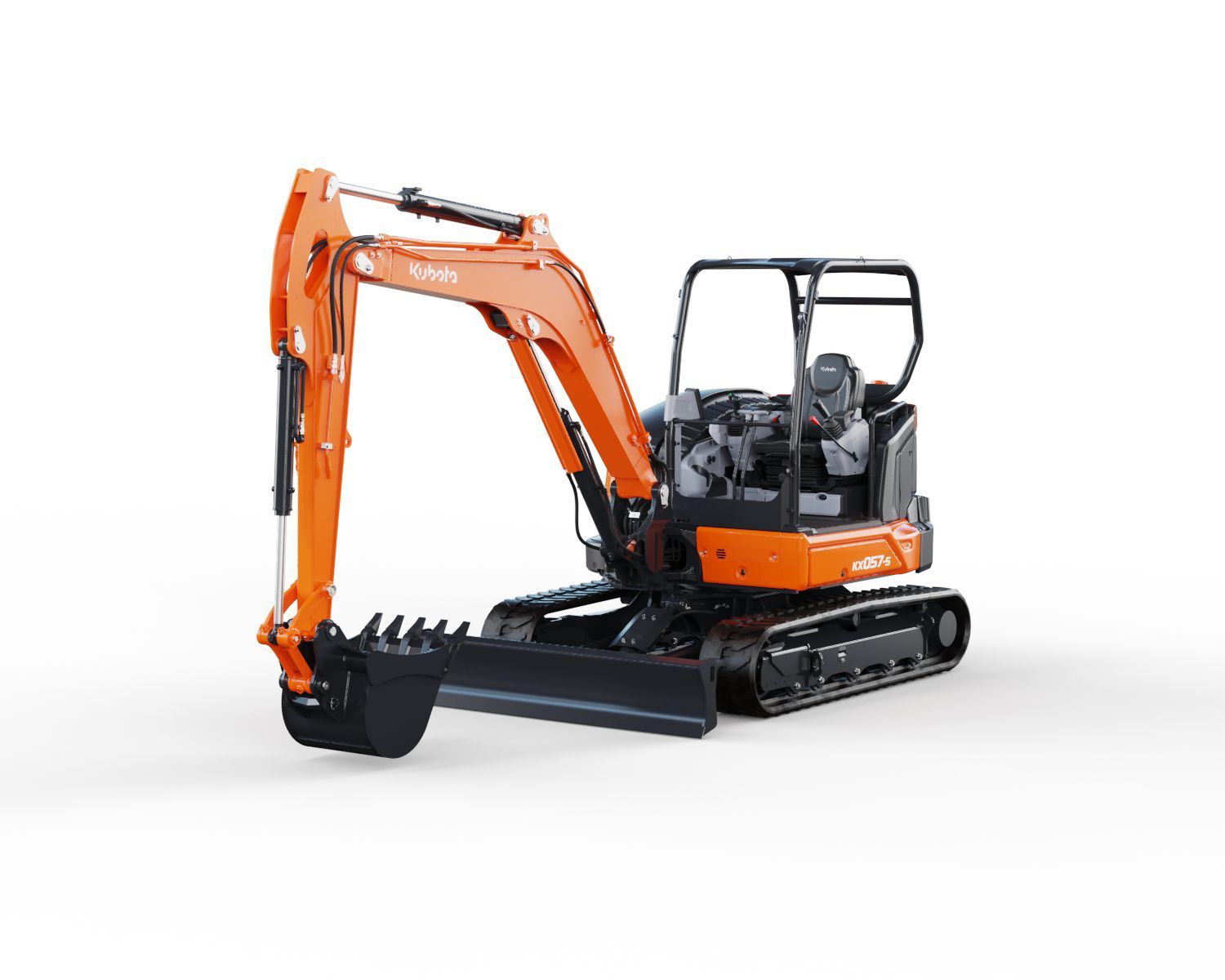

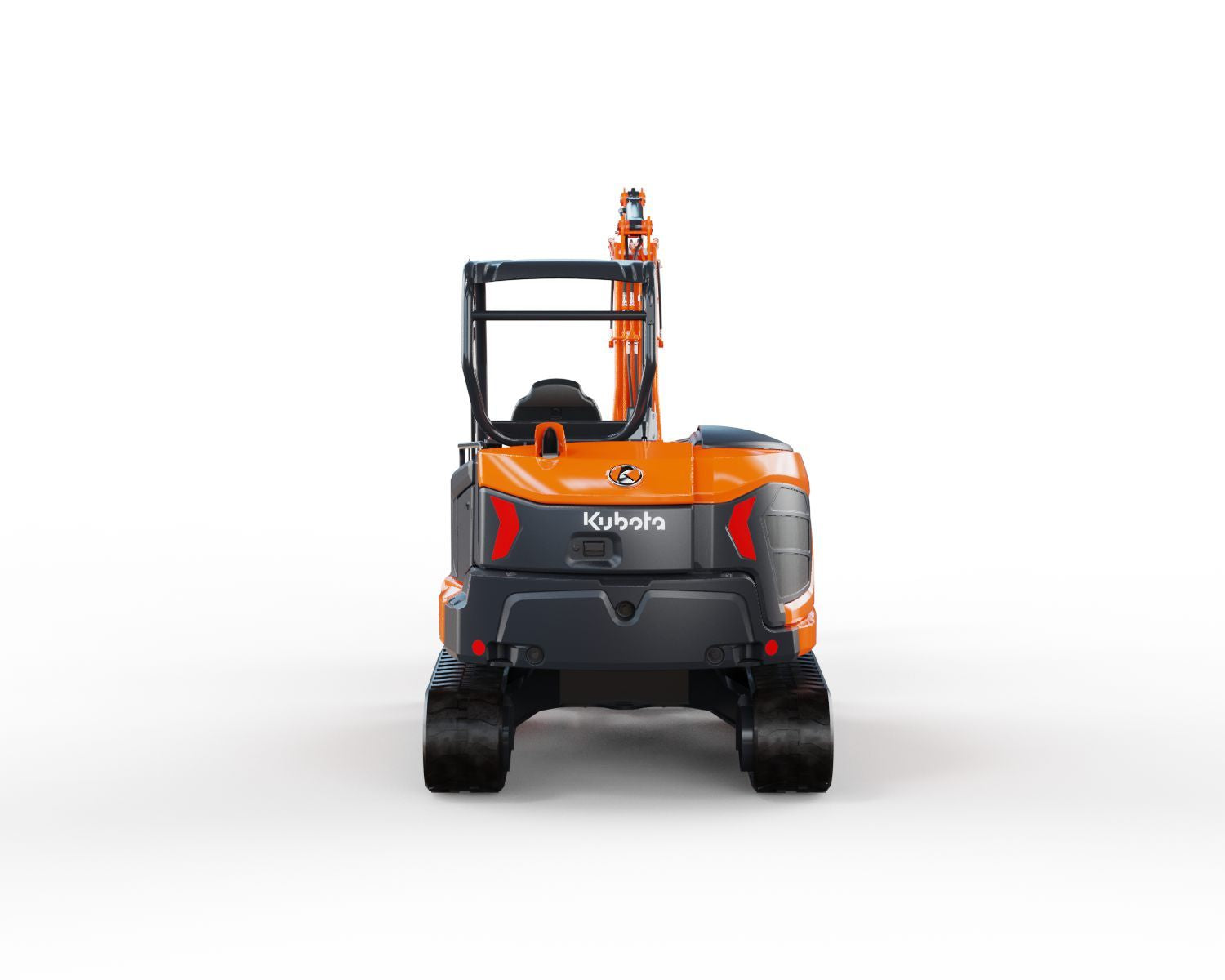

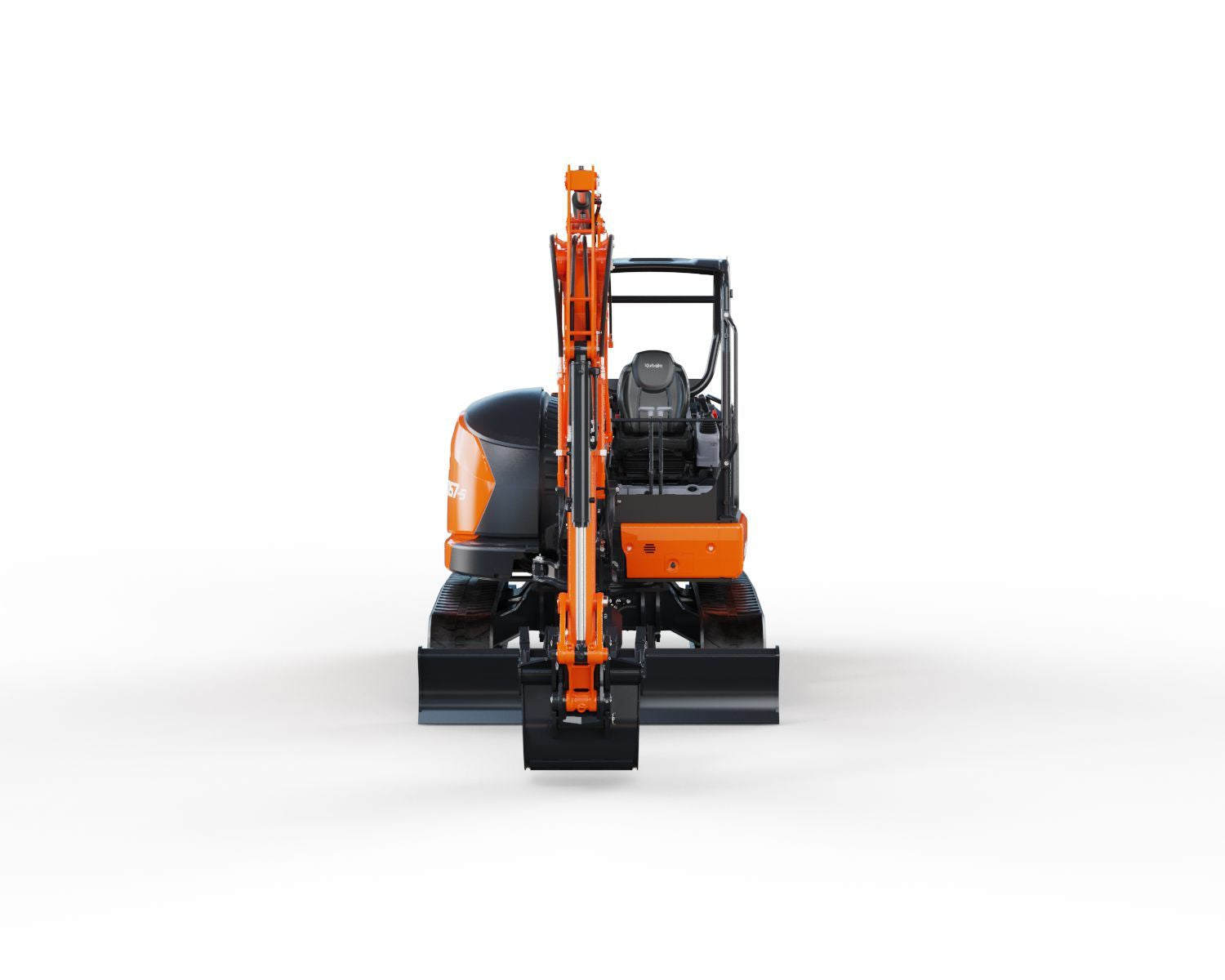

Kubota KX057-5R1A (ROPS)
The Kubota KX057-5R1A (ROPS) does not just give you the best in durability, comfort, and performance - it embodies Kubota’s ever-growing pursuit of innovation. Rated at 47.6 horsepower, this compact excavator is built to help you dig deeper, lift higher, and take on whatever task you throw its way. With an open ROPS design and available hydraulic angle blade, you get the control and versatility needed for efficient grading and backfilling. Let’s get to work. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2024 data from Off-Highway Research including all Kubota Group brand sales.
Images may reflect a higher MSRP.
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Serviceability
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication
- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
Engine
| Engine | |
|---|---|
| Model: | Kubota V2607-CR-E5 |
| Horsepower (gross): | 47.6 |
| Displacement (cu. in.) | 159.6 |
Dimensions
| Dimensions | |
|---|---|
| Overall Length, ft (mm): | 18'1" (5520) |
| Overall Height, ft (mm): | 8'4" (2550) |
| Overall Width, ft (mm): | 6'5" (1960) |
Hydraulics
| Hydraulics | |
|---|---|
| Pump Capacity (GPM): | 14.8 (56.1) |
| Auxiliary Hydraulic Flow (GPM): | 19.8 (75) / 9.8 (37) |
| Max. Breakout Force (lbs): | 10172 (4614) / 5463 (2478) |
Drive System
| Drive System | |
|---|---|
| Travel Speed (low/high) | 1.7 (2.8) / 3.0 (4.8) |
| Tumbler Distance ft. in. (mm) | 6'6" (1990) |
| Crawler Length ft. in. (mm): | 8'2" (2500) |
