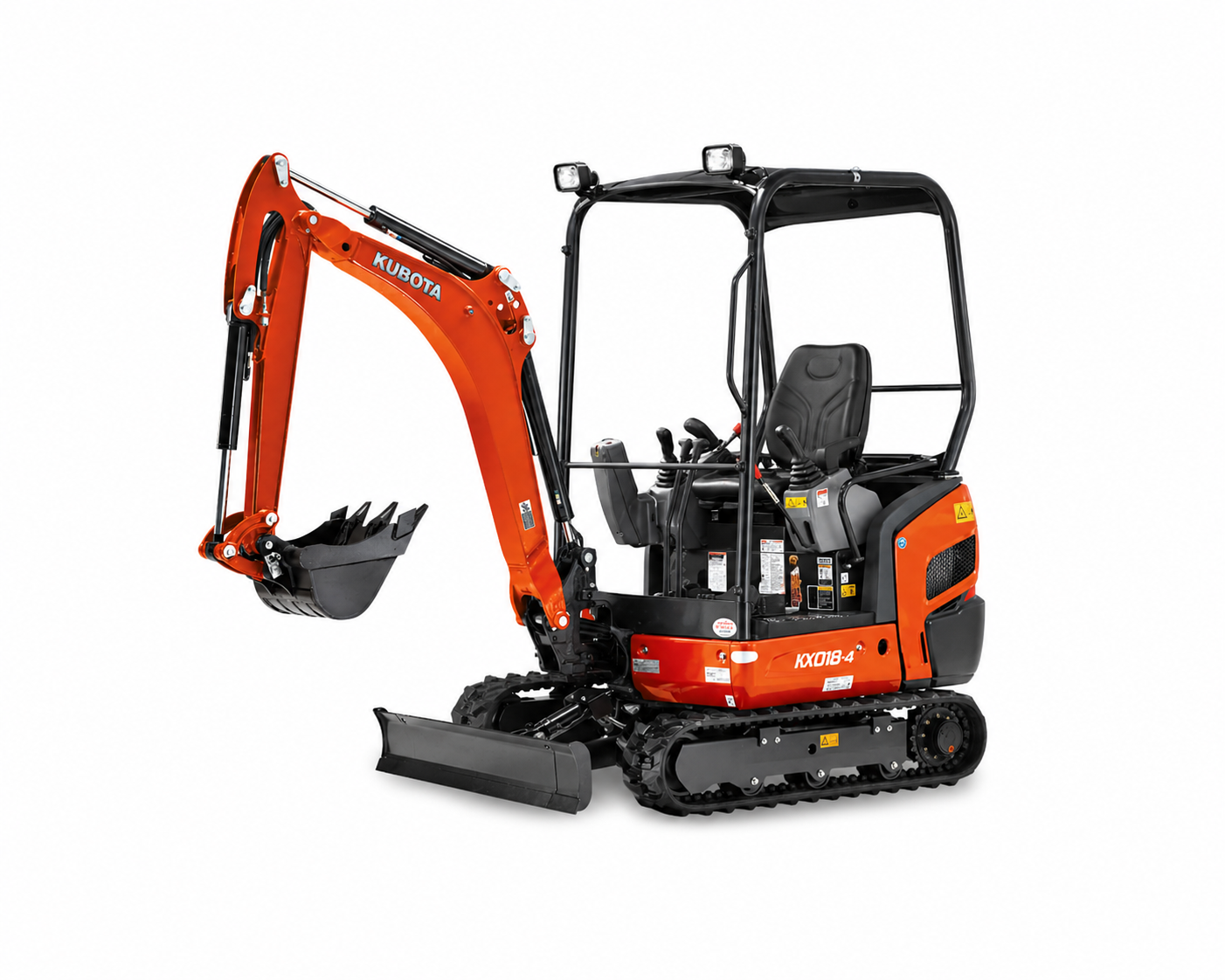

Kubota KX018-4R1 (ROPS)
Digging has never been easier than with the Kubota KX018-4R1 (ROPS) compact excavator. Combine the KX018-4’s 16.1 horsepower with superior maneuverability and versatility, and you will never have to question whether you can get the job done. Designed with an open ROPS configuration, it delivers a simple, durable operating experience while keeping you in control. There has never been a better way to move ground. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2024 data from Off-Highway Research including all Kubota Group brand sales.
Images may reflect a higher MSRP.
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Serviceability
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication
- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
Engine
| Engine | |
|---|---|
| Model: | Kubota D902-BH-E4 |
| Horsepower (gross): | 16.1 |
| Displacement (cu. in.) | 54.80 |
Dimensions
| Dimensions | |
|---|---|
| Overall Length, ft (mm): | 12ft 2 in (3710) |
| Overall Height, ft (mm): | 7ft 7.7in (2350) |
| Overall Width, ft (mm): | 4ft 3.2in (1300) / 3ft 3in (900) |
Hydraulics
| Hydraulics | |
|---|---|
| Pump Capacity (GPM): | 4.6 (17.3) x 2 |
| Auxiliary Hydraulic Flow (GPM): | 7.4 (27.7) |
| Max. Breakout Force (lbs): | 3594 (1630) / 1852 (840) |
Drive System
| Drive System | |
|---|---|
| Travel Speed (low/high) | 1.4 / 2.5 mph |
| Tumbler Distance ft. in. (mm) | 4'1" (1230) |
| Crawler Length ft. in. (mm): | 5'2.6" (1590) |
