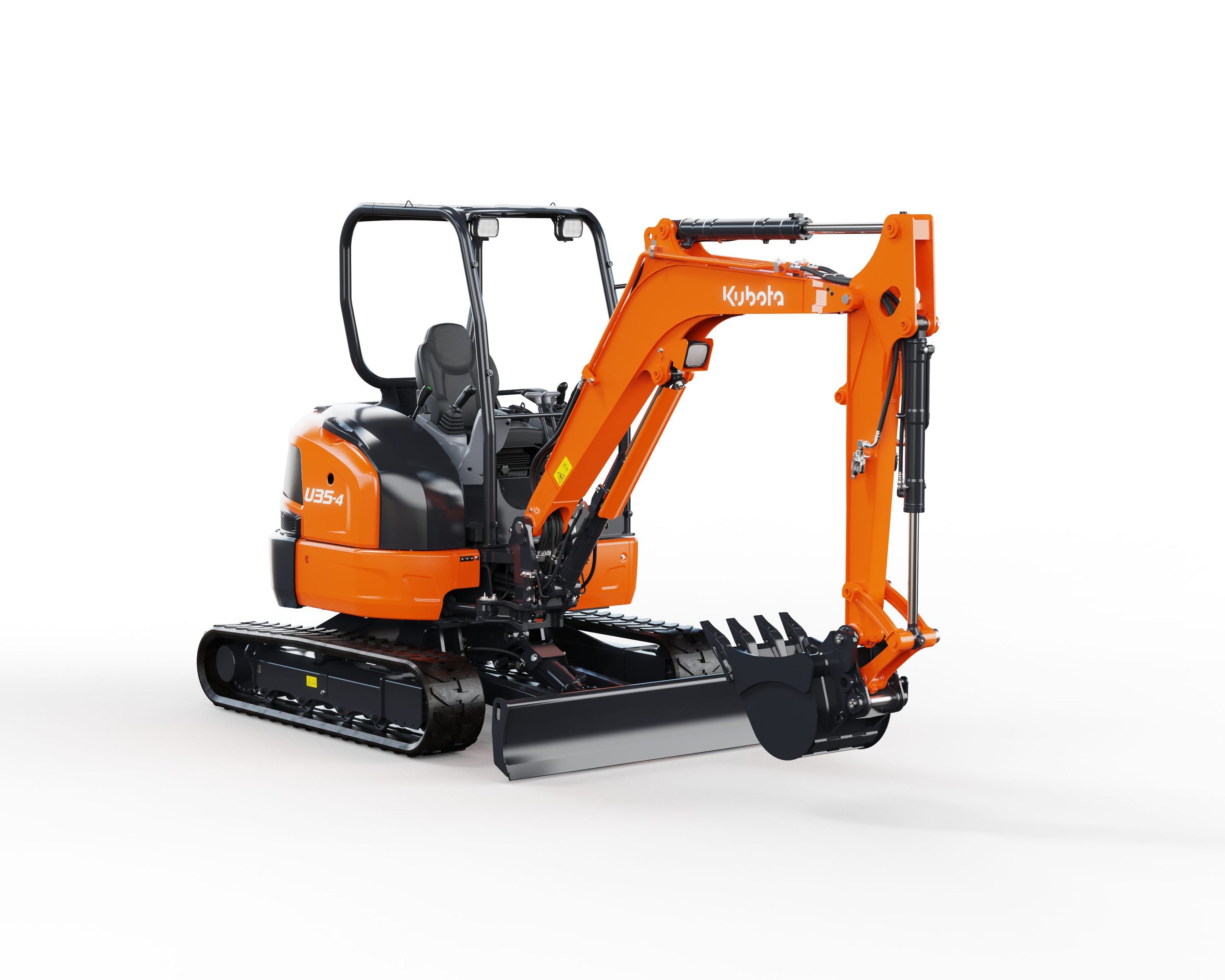

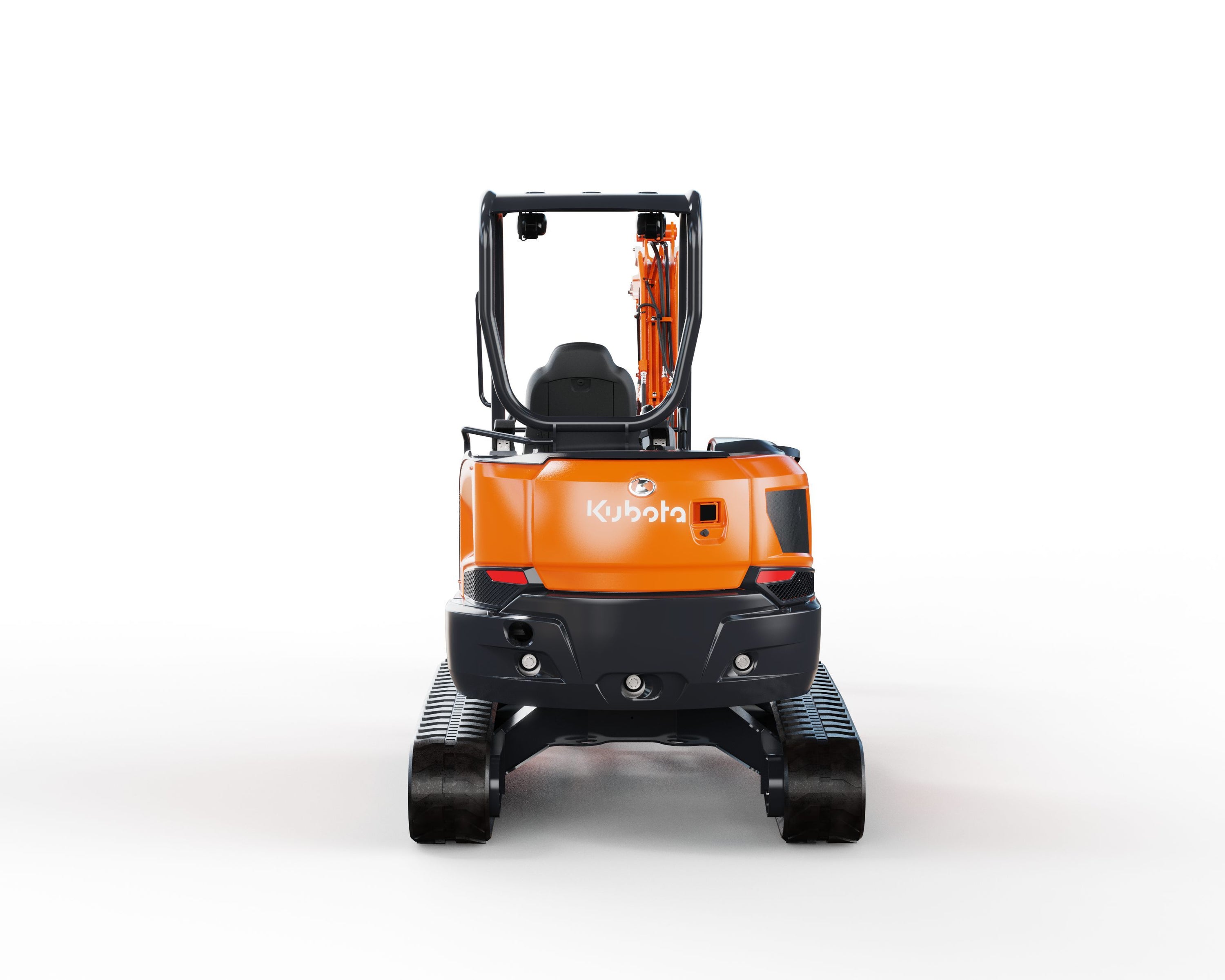

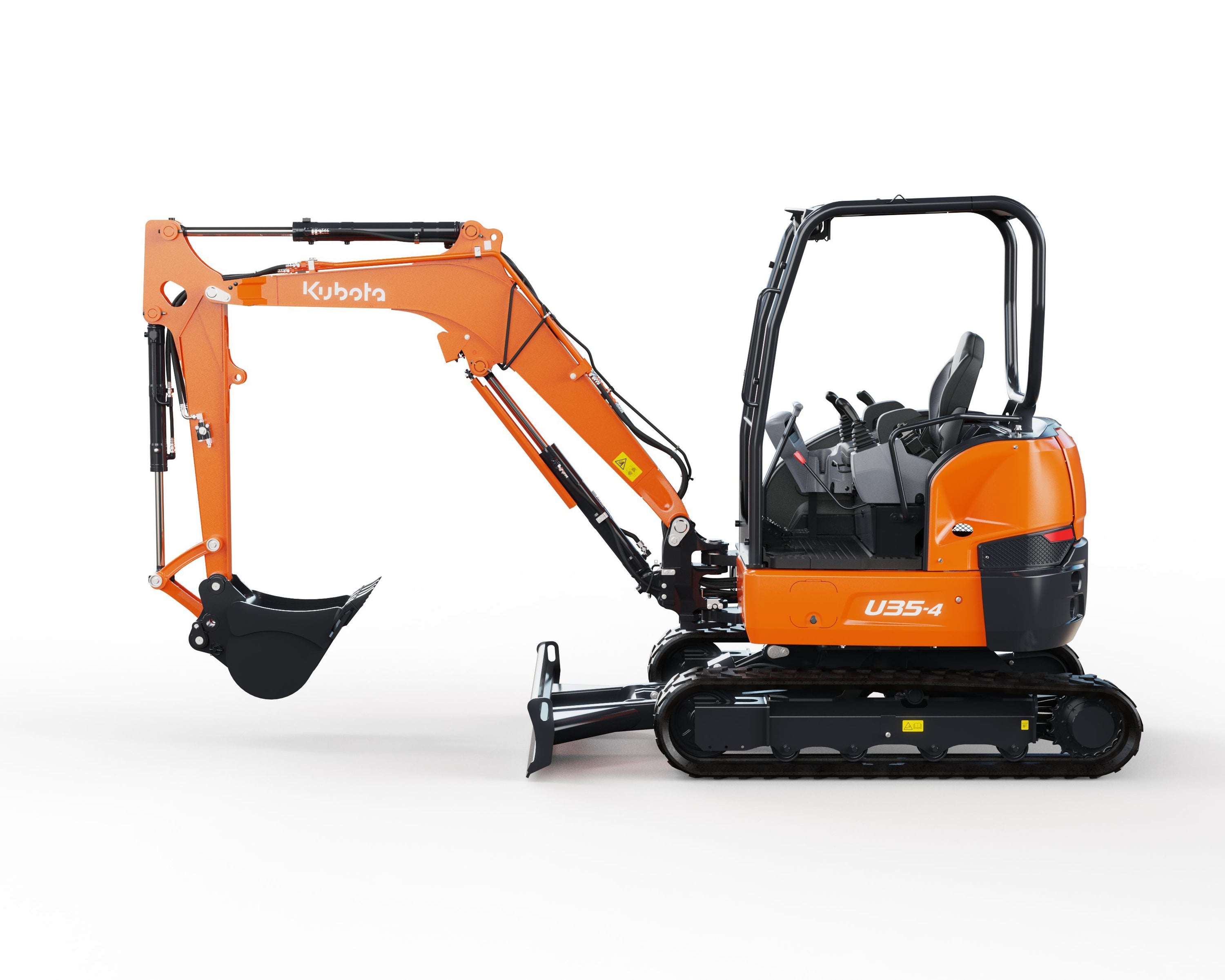

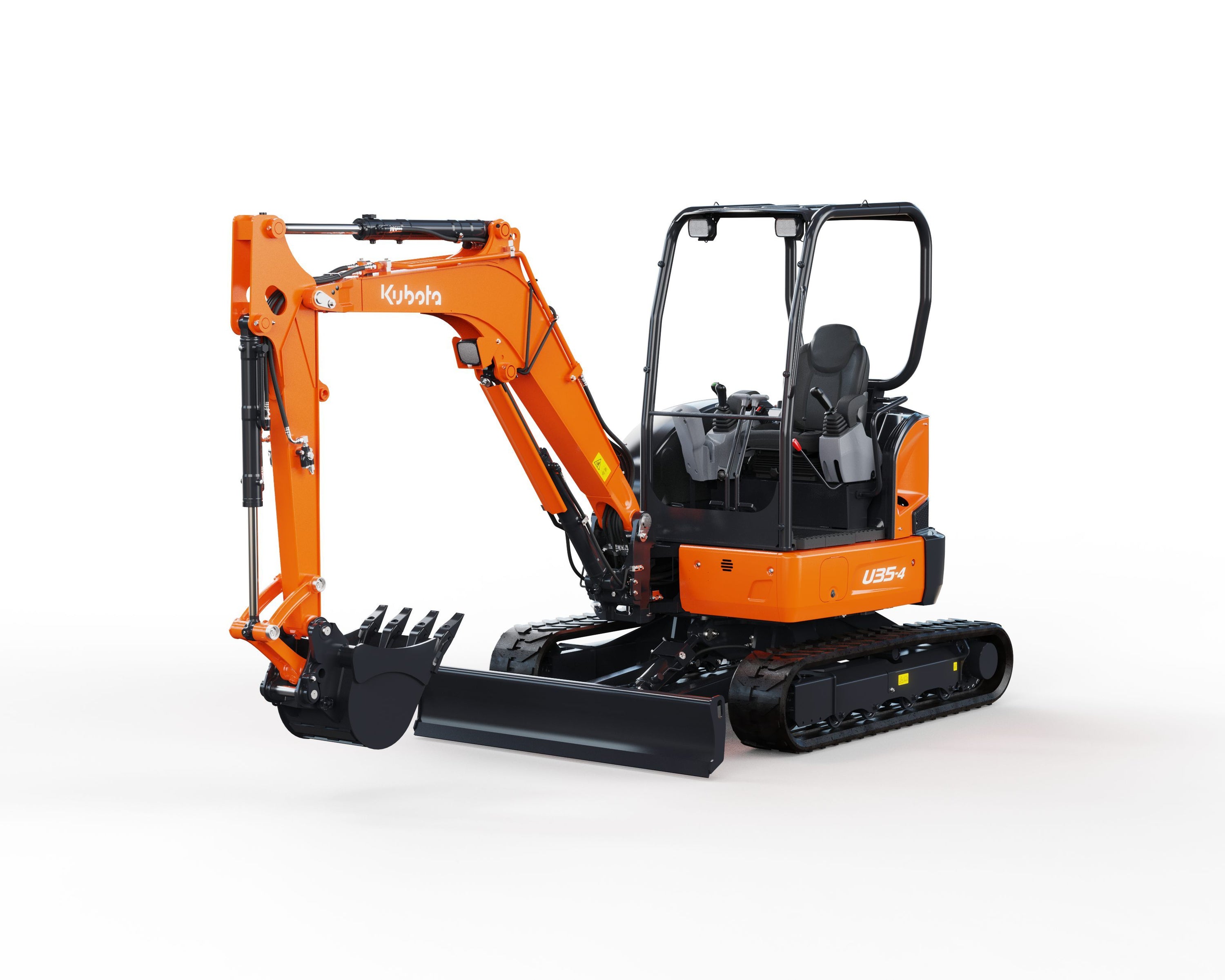

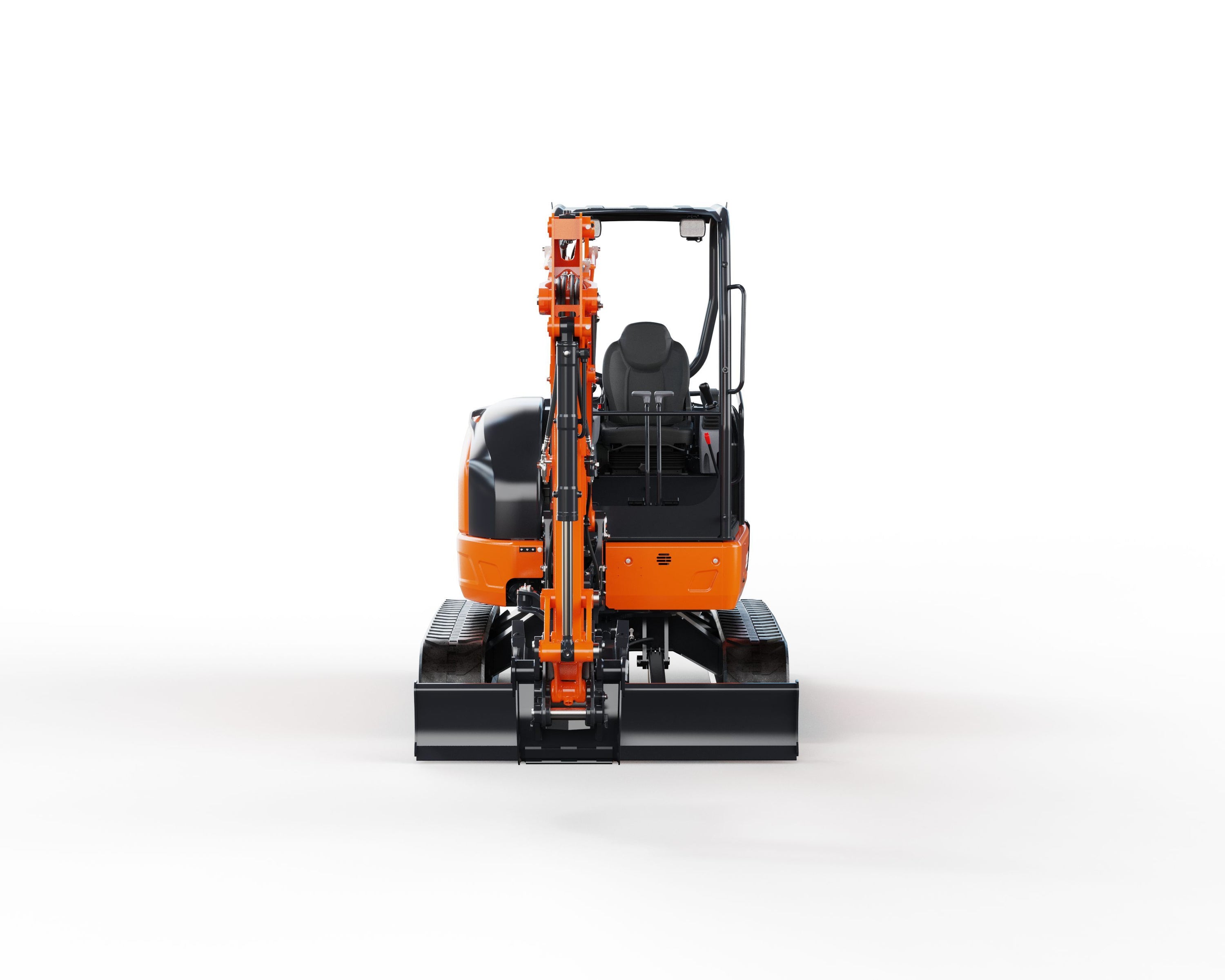

Kubota U35-4R1A (ROPS)
With a wide range of attachments, a powerful 24.8 horsepower engine, and an available hydraulic angle blade, the Kubota U35-4R1A (ROPS) Compact Excavator is built to help you get more done with less effort. Designed for durability and efficiency, the angle blade allows you to push and direct material with precision, making grading and backfilling faster and easier. Inside, the operator’s station delivers a comfortable, intuitive experience that keeps you productive all day. Nimble enough for tight spaces and tough enough for changing terrain, the U35-4R1A is ready to take on any job and help you reach your full potential. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2024 data from Off-Highway Research including all Kubota Group brand sales.
Images may reflect a higher MSRP.
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Serviceability
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication
- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
Engine
| Engine | |
|---|---|
| Model: | D1703M-DI-E4 |
| Horsepower (gross): | 23.3 |
| Displacement (cu. in.) | 100.5 |
Dimensions
| Dimensions | |
|---|---|
| Overall Length, ft (mm): | 15 ft 7 in (4749) |
| Overall Height, ft (mm): | 8 ft 1.2 in (2470) |
| Overall Width, ft (mm): | 5 ft 6.9 in (1700) |
Hydraulics
| Hydraulics | |
|---|---|
| Pump Capacity (GPM): | 10.5 |
| Auxiliary Hydraulic Flow (GPM): | 15.8 |
| Max. Breakout Force (lbs): | 7924 |
Drive System
| Drive System | |
|---|---|
| Travel Speed (low/high) | 2.9/1.9 |
| Tumbler Distance ft. in. (mm) | 5 ft 4 in (1620) |
| Crawler Length ft. in. (mm): | 6 ft 10 in (2084) |
