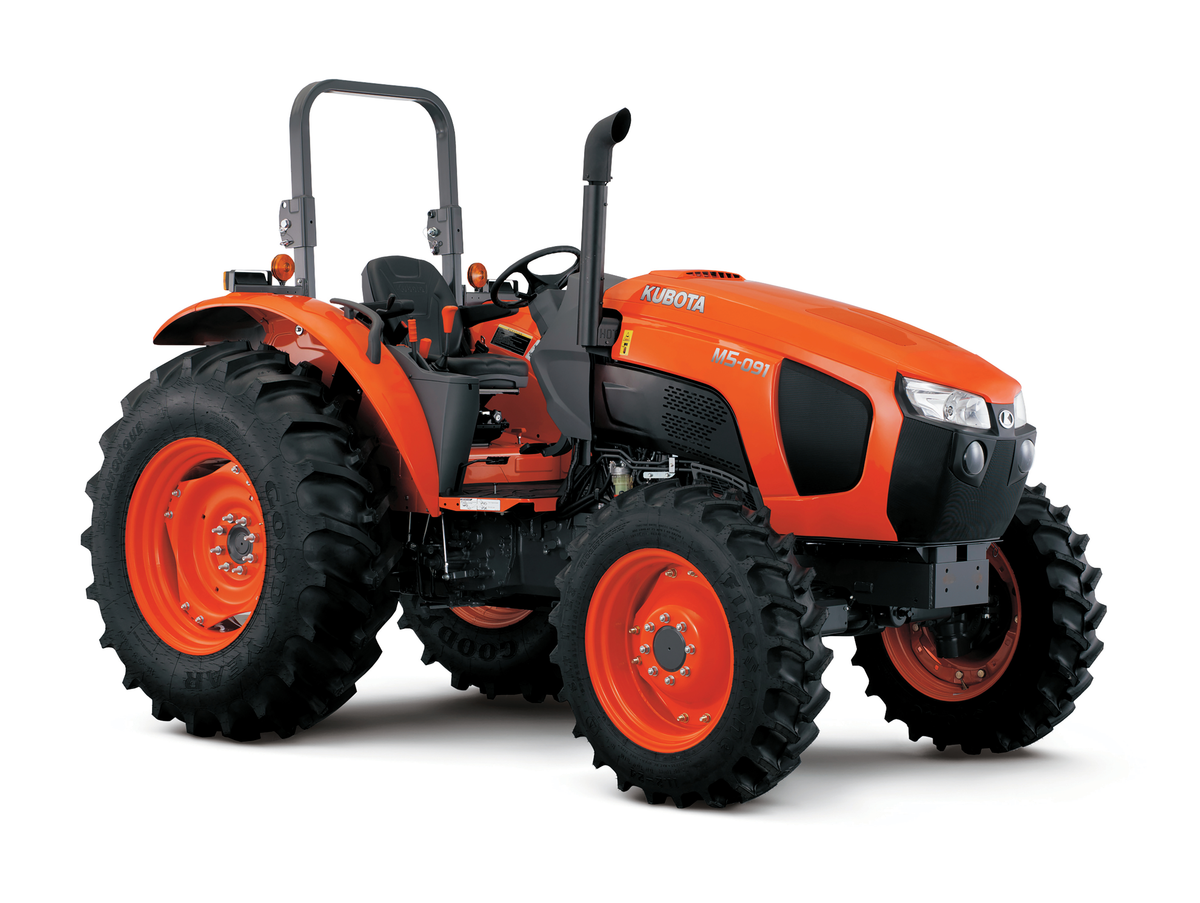

Kubota M5-091HD12-1 (ROPS)
The Kubota M5-091HD12-1 is a powerful and versatile utility tractor built to handle demanding agricultural, commercial, and property maintenance tasks. With 92.5 Gross Engine HP and an open ROPS design, this M5 Series tractor delivers dependable performance, easy operation, and excellent visibility. Its combination of power, durability, and deluxe features makes it a great choice for operators who need a capable tractor for everything from hay work and loader applications to everyday farm and property use.
Images may reflect a higher MSRP.
Meet the M5 Series
Kubota's M5 Series is the answer to being productive, dynamic and precise. The M5 is available in a 2WD and 4WD in both a ROPS and cab. This series offers a variety of transmission options within a horsepower range of 92.5 to 105.6. The M5 offers deluxe features you would expect to find on more premium tractors. #1 Selling Tractor Under 200 HP.*
Performance
Power and flexibility in transmission options makes the dynamic M5 always ready to work. Transmission options include 8Fx8R, 12Fx12R, and 24Fx24R allowing the operator to tackle a wide variety of activities from plowing to feeding cattle. Additional dynamic features include optional loader KSR making transporting materials smoother at higher speeds. Constant RPM management uses the electronic engine control to actively keep the engine working at optimal performance. It makes working with PTO implements more efficient.
The Kubota designed and built M5 series is optimal for any task size. The powerful Kubota engine maintains productivity year round while featuring high visibility and additional comfort features to keep the operator comfortable for a long day of work. The conveniently placed shuttle lever makes shifting between forward and reverse smooth and quick while boosting productivity by eliminating the need to depress the clutch when changing directions. RPM dual memory allows the operator to change between two engine speeds at the press of a button to save time while working.
Engine
| Engine | |
|---|---|
| Model: | V3800CR-TIEF4 |
| Engine Gross HP at 3200 RPM: | 85.5 |
| PTO Horsepower at 3200 RPM: | 76 |
| Displacement: | 230 |
| Fuel Tank Capacity: | 27.7 gal |
Drive Train
| Drive Train | |
|---|---|
| Transmission: | F12/R12 |
| Drive Method: | 4WD |
| Brakes: | Hydraulic Wet Disc |
| PTO: | Live-independent PTO, electro-hydraulic clutch with brake |
Hydraulics
| Hydraulics | |
|---|---|
| Pump Output: | 15.9 gpm |
| 3-Point Hitch: | Telescopic Lower Link Ends, Telescopic Stabilizers |
| Lift Capcity at 24 in. Behind Pin: | 7275 lbs |
| Steering: | Hydrostatic power steering |
Dimensions
| Dimensions | |
|---|---|
| Wheelbase: | 88.6 in. |
| Overall Length: | 155.9 in. |
| Overall Height: | 98.8 in. |
| Turning Radius (w/o brake): | 13.8 ft |
| Tractor Weight with ROPS: | 6041 lbs |
Traveling Speeds
| Traveling Speeds | |
|---|---|
| Forward: | 1.6-18.2 mph |
| Reverse: | 1.6-18.6 mph |
