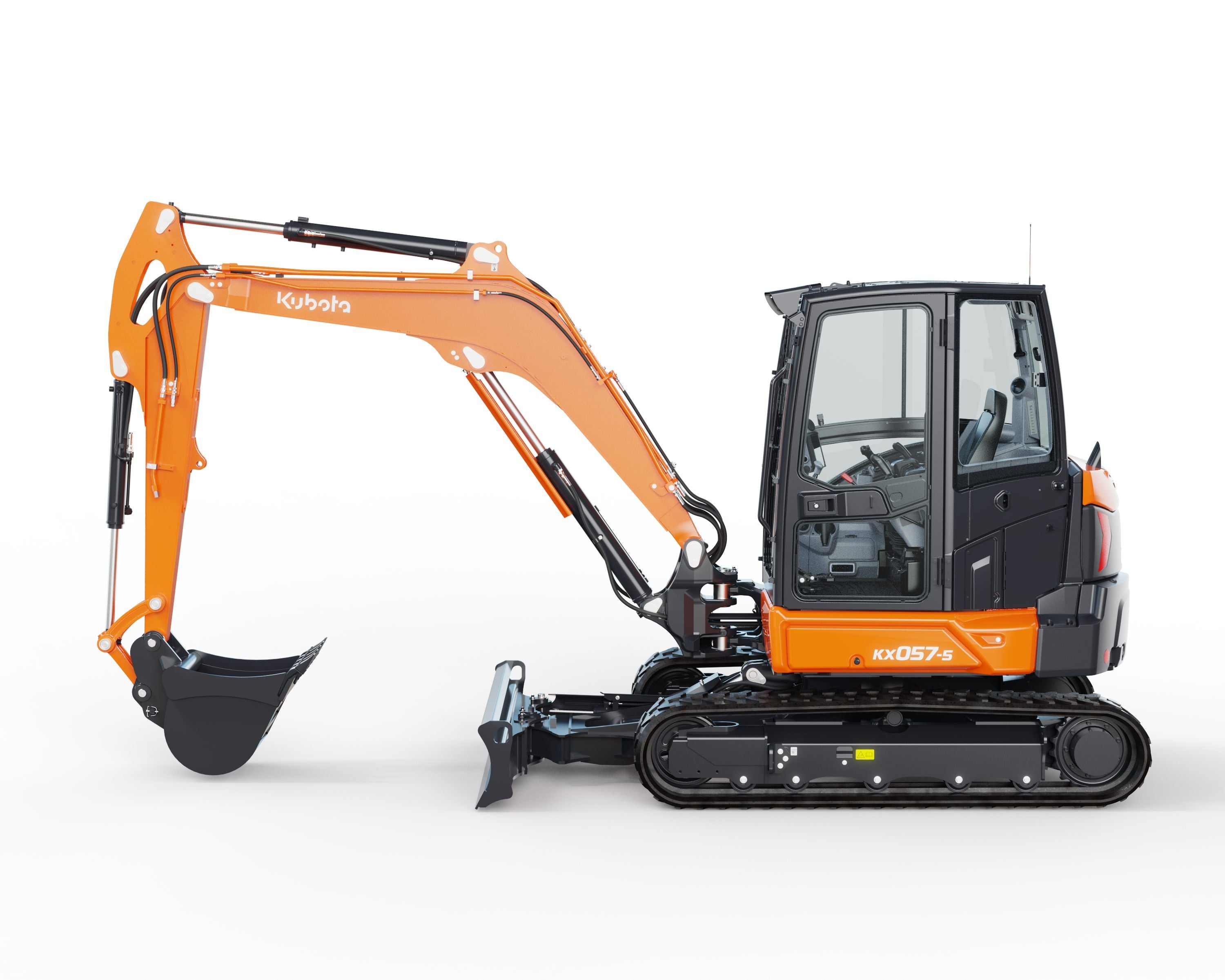

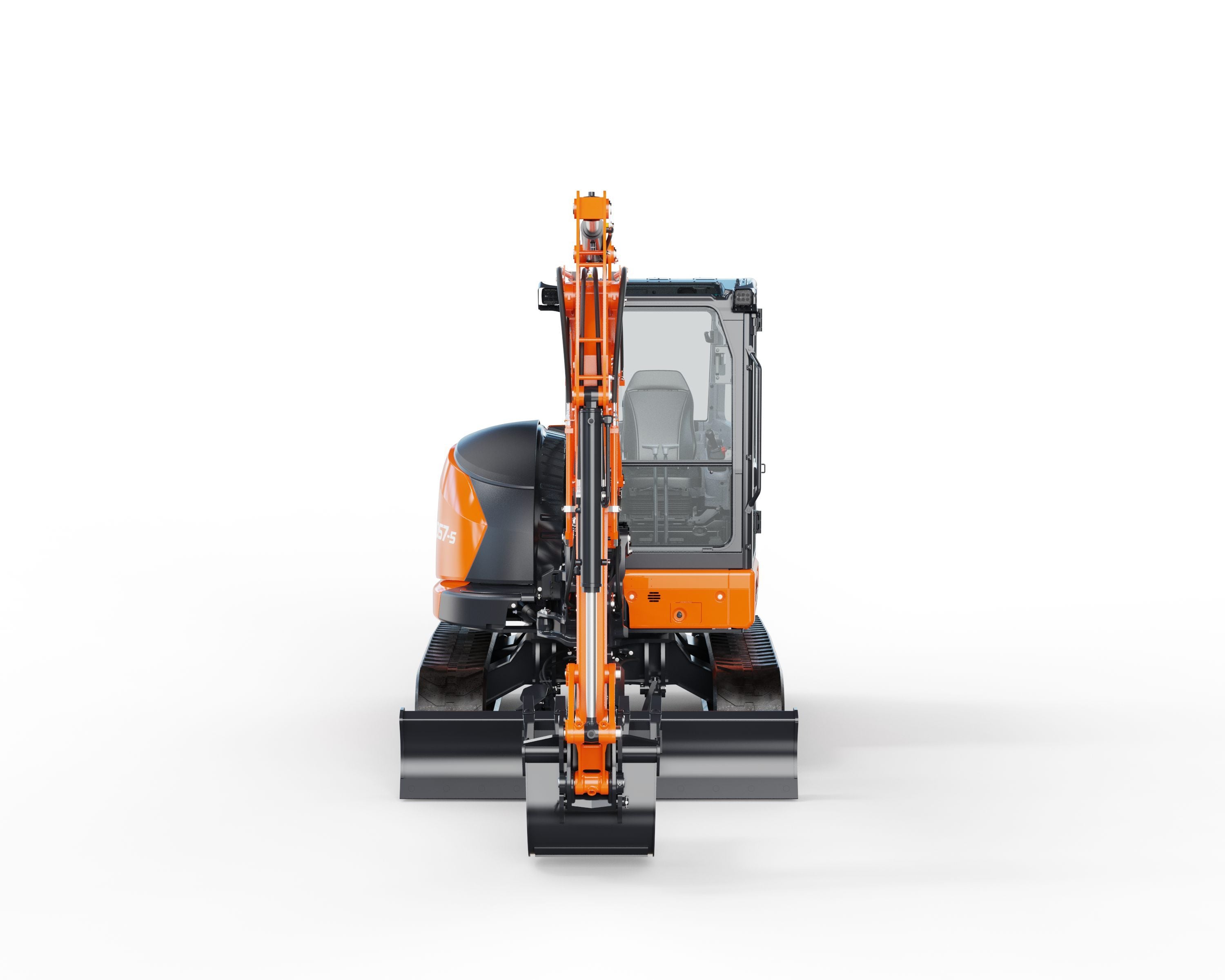

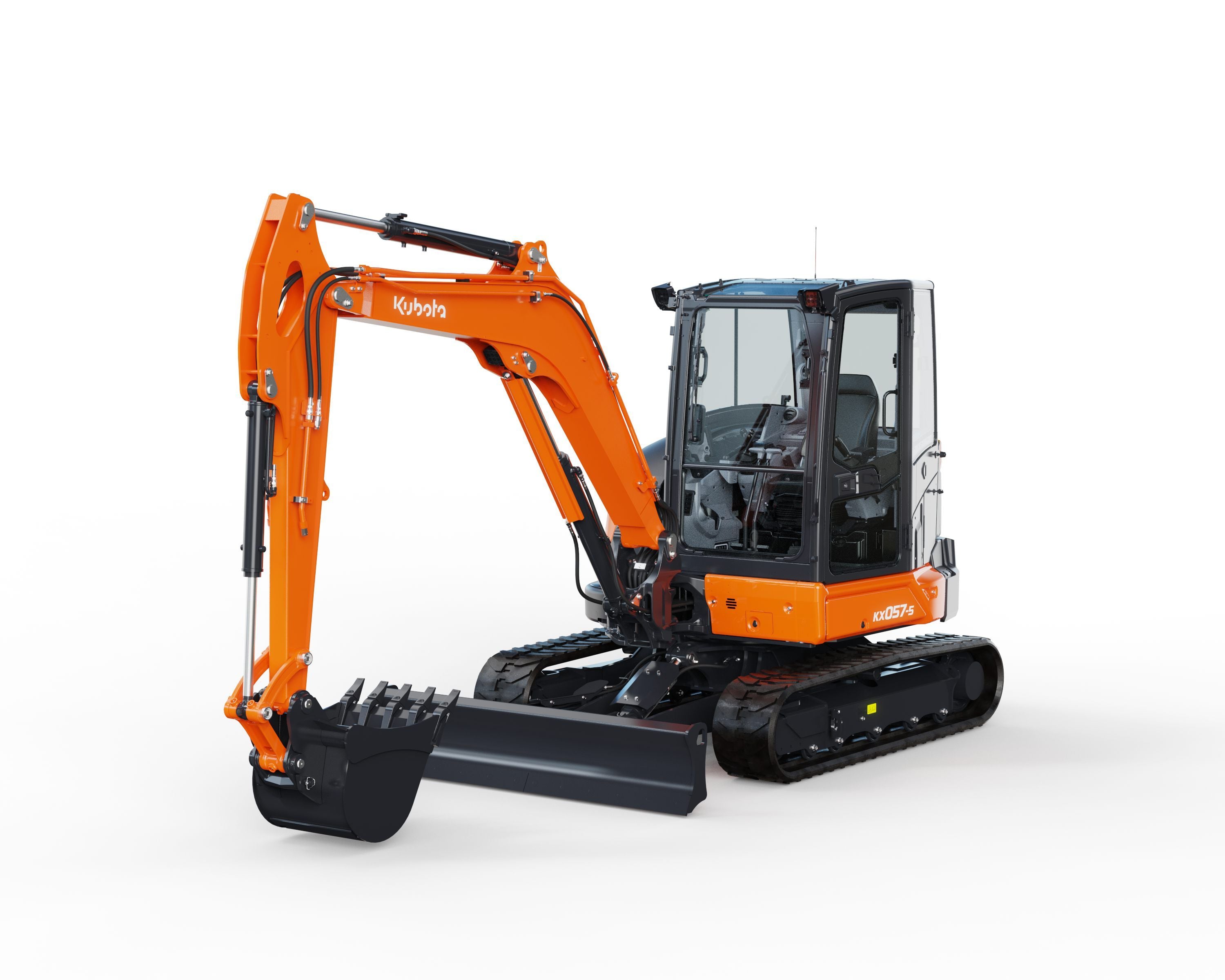

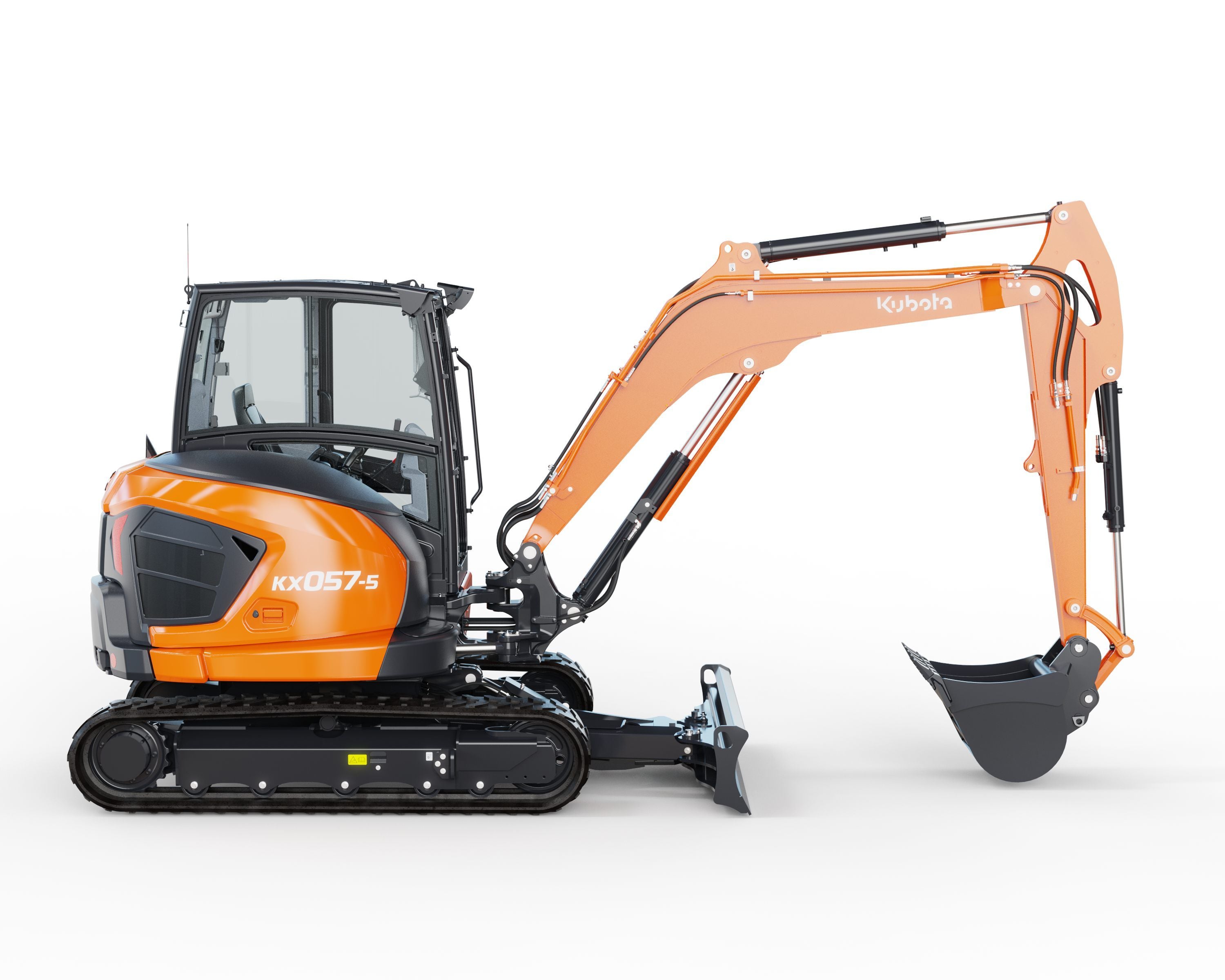

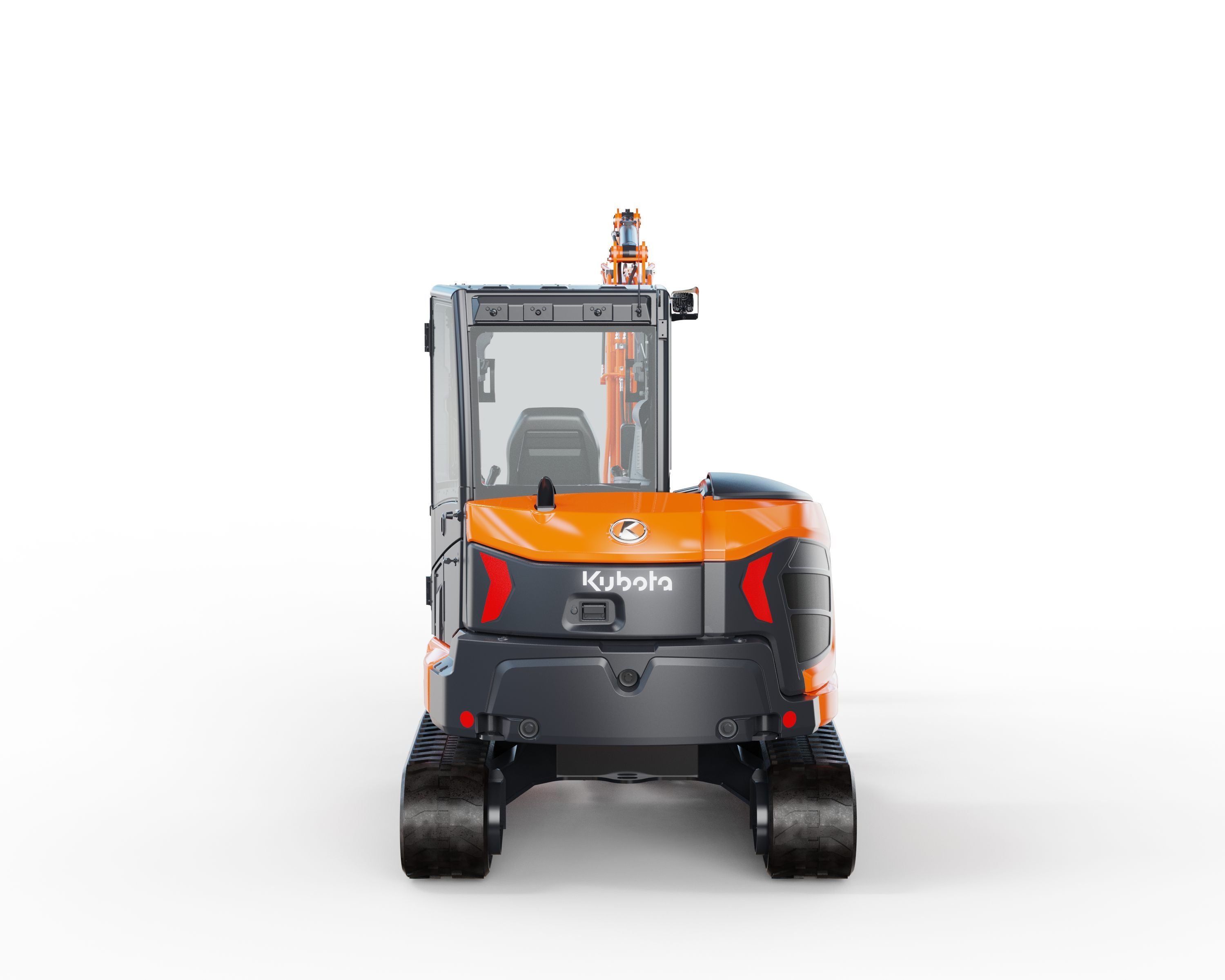

Kubota KX057-5R3AP (CAB)

MSRP AS LOW AS:
$91,499.00 USD
Payments as Low as $1,389/Month.

The Kubota KX057-5R3AP (CAB) does not just give you the best in durability, comfort, and performance - it embodies Kubota’s ever-growing pursuit of innovation. Rated at 47.6 horsepower, this compact excavator is built to help you dig deeper, lift higher, and take on whatever task you throw its way. Equipped with an available hydraulic angle blade and extra port hydraulics, you get added versatility to run attachments and handle grading and backfilling with greater precision and efficiency. Inside the cab, you will find a spacious, comfortable operator environment designed to keep you productive all day long. Let’s get to work. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2024 data from Off-Highway Research including all Kubota Group brand sales.

Images may reflect a higher MSRP.

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

Clean Running Kubota Tier 4 Engine

Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.

Two Speed Travel

All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.

Serviceability
  • Front pin bushings to help maximize durability
  • Centralized swivel bearing lubrication
  • Protected cylinder hoses
  • Steel hood panels
  • One-sided engine maintenance
  • Wide hood openings for easy access to engine and other vital components

Engine
Engine
Model:Kubota V2607-CR-E5
Horsepower (gross):47.6
Displacement (cu. in.)159.6

Dimensions
Dimensions
Overall Length, ft (mm): 18'1" (5520)
Overall Height, ft (mm):8'4" (2550)
Overall Width, ft (mm):6'5" (1960)

Hydraulics
Hydraulics
Pump Capacity (GPM):14.8 (56.1)
Auxiliary Hydraulic Flow (GPM):19.8 (75) / 9.8 (37)
Max. Breakout Force (lbs):10172 (4614) / 5463 (2478)

Drive System
Drive System
Travel Speed (low/high)1.7 (2.8) / 3.0 (4.8)
Tumbler Distance ft. in. (mm)6'6" (1990)
Crawler Length ft. in. (mm):8'2" (2500)
