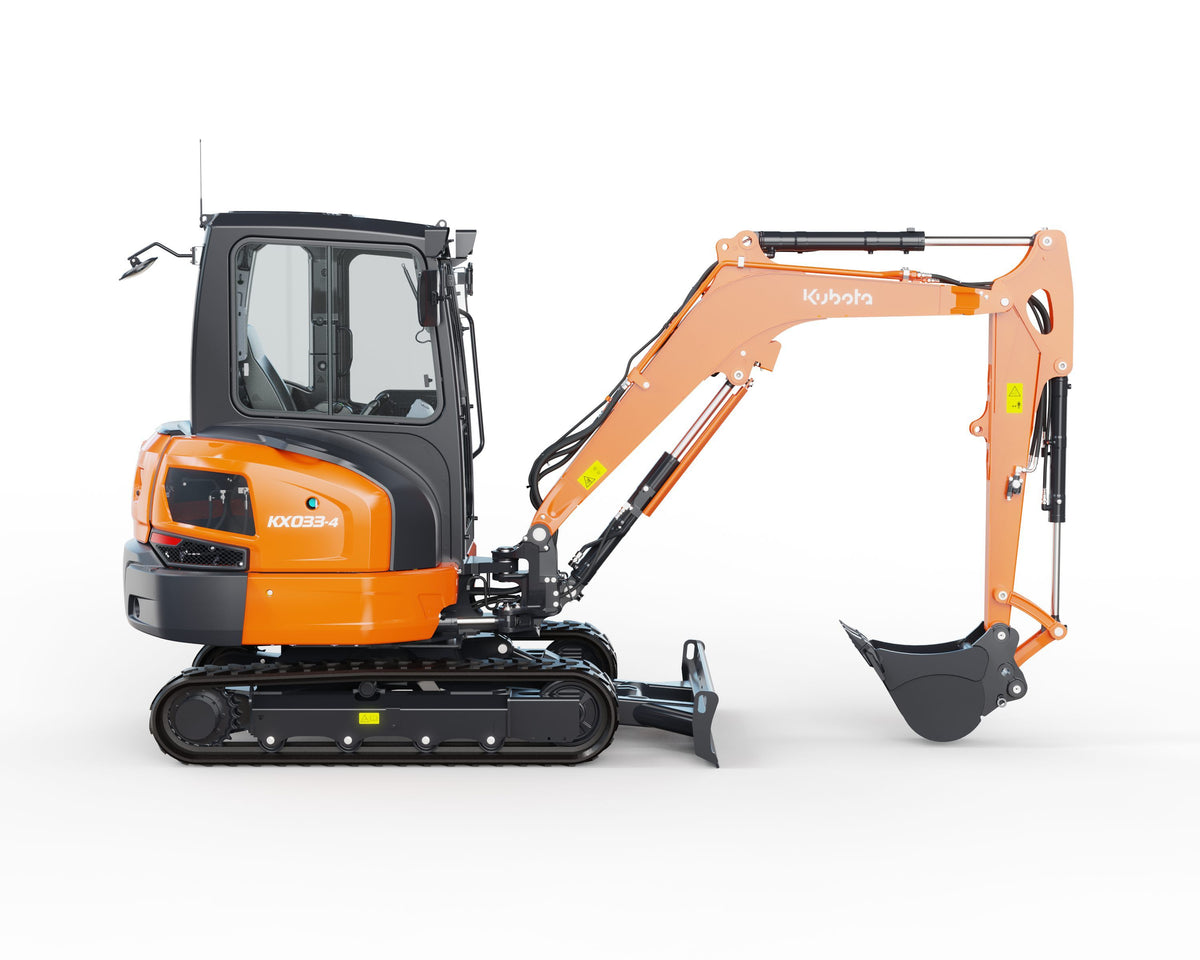

Kubota KX033-4R3A (CAB)
With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4R3A (CAB) is unlike any compact excavator you have seen before. Inside the cab, you will find a spacious, comfortable operator environment designed to keep you productive and in control all day long. Get the job done the right way, every time, with performance you can rely on. Once you get behind the controls of the KX033-4R3A, you will not want to step away. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2024 data from Off-Highway Research including all Kubota Group brand sales.
images may reflect a higher MSRP.
Clean Running Kubota Tier 4 Engine
Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
Two Speed Travel
All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
Serviceability
- Front pin bushings to help maximize durability
- Centralized swivel bearing lubrication
- Protected cylinder hoses
- Steel hood panels
- One-sided engine maintenance
- Wide hood openings for easy access to engine and other vital components
Engine
| Engine | |
|---|---|
| Model: | Kubota D1703M-DI-E4 |
| Horsepower (gross): | 23.3 |
| Displacement (cu. in.) | 100.5 |
Dimensions
| Dimensions | |
|---|---|
| Overall Length, ft (mm): | 15'6" (4730) |
| Overall Height, ft (mm): | 8'1" (2480) / 8'1" (2470) |
| Overall Width, ft (mm): | 5'1" (1550) |
Hydraulics
| Hydraulics | |
|---|---|
| Pump Capacity (GPM): | 10.5 (39.6) x 2 / 5.5 (20.9) x 1 |
| Auxiliary Hydraulic Flow (GPM): | 15.8 (60) |
| Max. Breakout Force (lbs): | 8138 (3694) / 3867 (1756) |
Drive System
| Drive System | |
|---|---|
| Travel Speed (low/high) | 1.9 (3.0) / 2.9 (4.6) |
| Tumbler Distance ft. in. (mm) | 5'5.6" (1665) |
| Crawler Length ft. in. (mm): | 6'10.6" (2100) |
